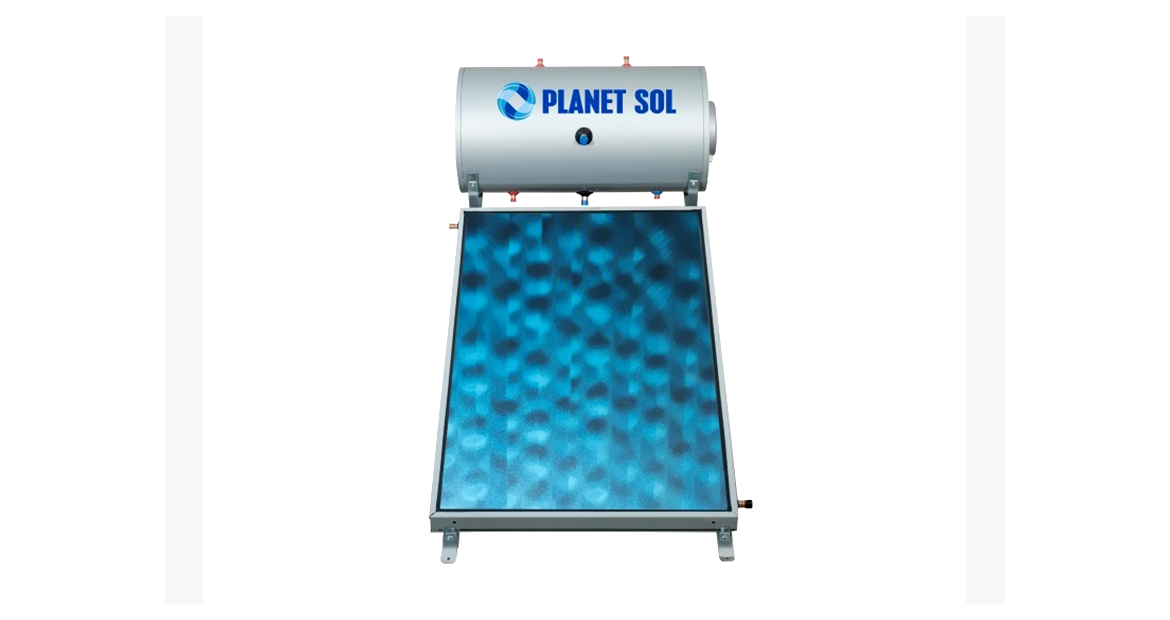

120LT WITH VERTICAL SELECTIVE COLLECTOR 1,51M²

Tank Specifications:

Outer cover: metallic outer cover in grey colour Inner tank: Steel sheet EN 10130AIDCP 3.00mm thickness. Inner tank coating made of double liquid enamel processed at 860° C (glass) according DIN4753 Dimensions: 520mm x 1050mm Heat exchanger: jacket type, of the same material and thickness of 2.00mm Insulation: of expended P.U. CFC free of high density 52kg/m³, 60mm thickness Working pressure: 10 bar

Collector Specifications:

Dimensions:(length x height x width): 1009mm x 1501mm x 85mm Case made of aluminium profile Aluminium rear cover Heavy duty absorber copper tubes laser welded to the absorbing plate for instant heat transmission. Aluminium absorbing plate 0.5mm coated with Chrome-Nickel blue selective layer. Solar irradiation absorbance factor a≥0.95 ± 2% and reflection e≤0.5 ± 2% Insulation with rockwool and glass fibre wool of density 80kg/m³ and 30kg/m³ accordingly, ensuring high performance and minimum heat loss. Tempered glass front cover low iron 4mm thickness ensuring durability and high transparency factor. The system includes: corrosion protection with Mg rod – electrical element 1.5kw till 4kw – closed circuit valve 3 bar – safety valve 10 bar / non return valve – accessories and transitions connectors – antifreeze Frame: Mounting structure from hot galvanized steel 2.00mm thickness
