Outer cover: metallic outer cover in grey colour
Inner tank: Steel sheet EN 10130AIDCP 3.00mm thickness. Inner tank coating made of double liquid enamel processed at 860° C (glass) according DIN4753
Dimensions: 580mm x 1300mm
Heat exchanger: mantel type,of the same material and thickness of 2.00mm
Insulation: of expended P.U. CFC free of high density 50kg/m³, 60mm thickness
Working pressure: 10 bar
Weight: 80kg

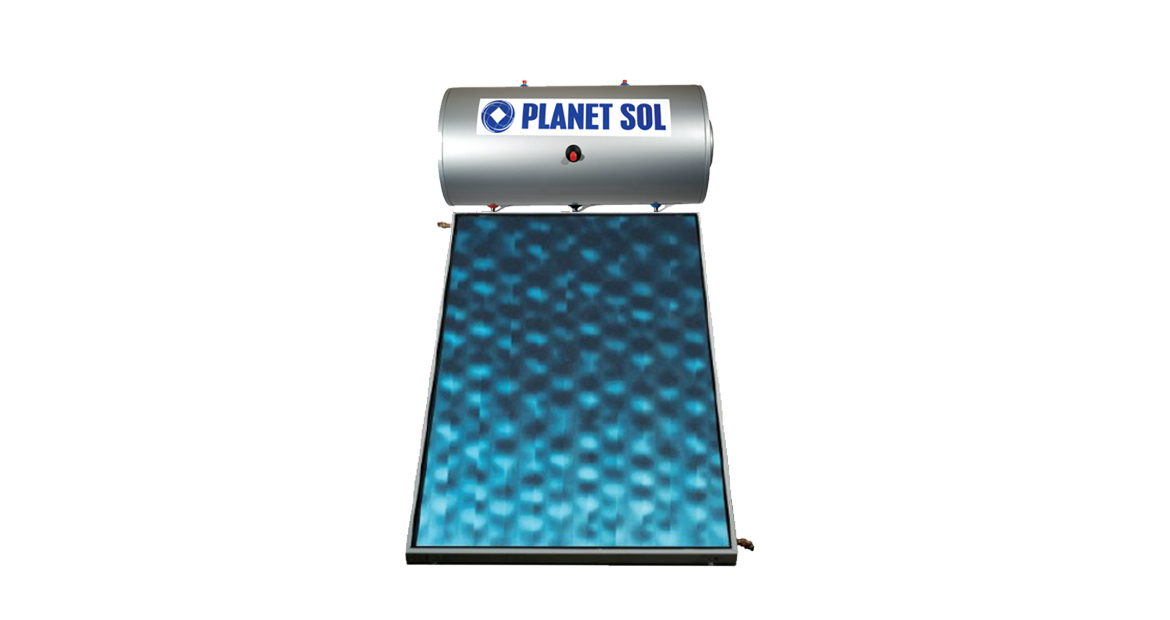

Collector Specifications:
Dimensions of vertical collector: (length x height x width): 1277mm x 2017mm x 90mm
Case (100mm section) made of anodised electrostatically powder-painted aluminium profile for extended life.
Galvanised steel sheet rear cover 0.5mm thickness.
EPDM rubber and silicone seal for maximum waterproof protection.
Heavy duty absorber copper tubes laser welded to the absorbing plate for instant heat transmission.
Aluminium absorbing plate 0.5mm coated with Chrome-Nickel blue selective layer.
Solar irradiation absorbance factor a=0.95 ± 2% and reflection e=0.5 ± 2%
Insulation with rockwool and glass fibre woo of density 80kg/m³ and 30kg/m³
accordingly, ensuring high performance and minimum heat loss.
Tempered glass front cover low iron 4mm thickness ensuring durability and high transparency factor.
The system includes: corrosion protection with Mg rod – electrical element 1.5kw till 4kw – closed circuit valve 3bar – safety valve 10bar / non return valve – accessories and transitions connectors – antifreeze
Support frame: from hot galvanized steel 2.00mm thickness
